IAT Sensor Kit
Open Element intake air temperature kit to replace the factory air temperature sensor. Small size and weight, easy to install.
Overview

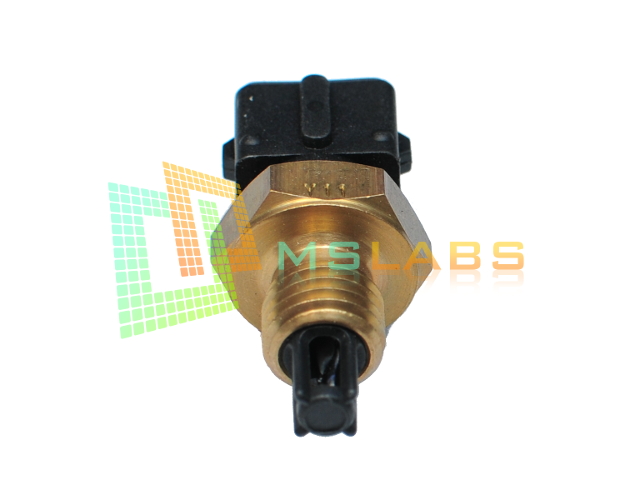

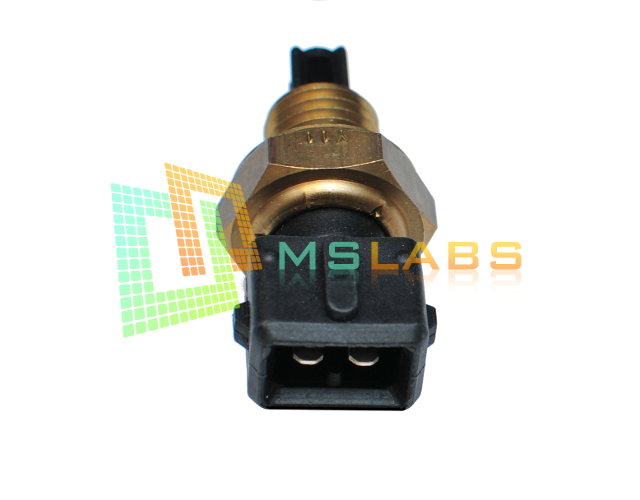

Open-element air temperature sensor to replace a stock closed-element type sensor. Threaded body to ensure the sensor stays in place under boost. Crush washer (included) for a perfect seal - no need for teflon tape or liquid sealants.
Replacing a closed element sensor with an open element ensures a more accurate measurement, as well as a faster response in reading the air temperature, which is extremely important under boost.

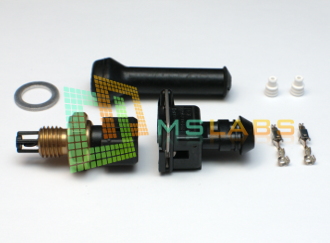

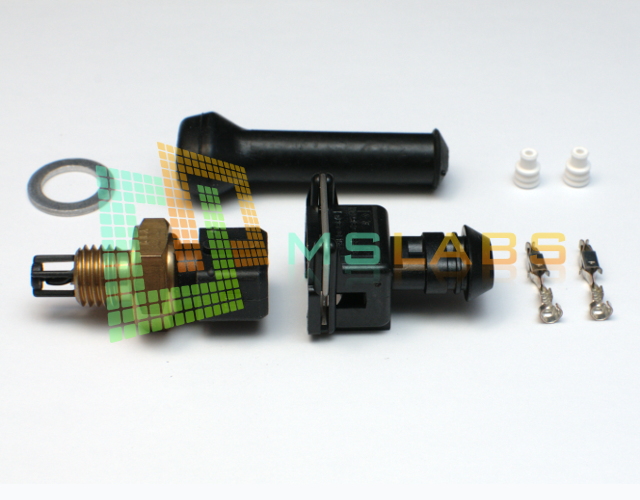

This kit includes the sensor, connector, pins, wire seals, rubber boot and crush washer.
Product Features
- Fast acting
- Reliable
- Threaded body
- Low weight
- Compact dimensions
- Standard automotive connector
Product Specifications
- Weight: 22g (3/4 oz)
- Thread: M12x1.5mm
- Head: M19 Hex
- Length: 44mm (1" 3/4) tip-to-connector
- Material: Brass, ABS plastic
- Temperature range: -30°C to +120°C
- Max temperature: +150°C
Product Options
There are no options for this product.
Product Photos
FAQ
Downloads
Manuals
- No manuals found. Please contact us for support.
